Precision at speed: Insize vision measurement for modern UK manufacturing

Over the years, Insize has built a strong reputation within the metrology market for delivering practical, cost-effective inspection solutions. As manufacturers face increasing pressure to improve productivity while maintaining rigorous quality standards, non-contact vision systems are becoming an increasingly attractive solution.

Within the Insize portfolio, the Vision Measuring Machine range, particularly the QMS Quick Measurement Systems and the ISD series, offers UK manufacturers a way to increase throughput, improve repeatability and strengthen quality control without the complexity or footprint of larger coordinate measuring machines.

QMS: High-speed, one-click measurement

Speed on the shop floor is everything. The QMS range has been designed with that principle at its core. Using high-resolution digital cameras combined with telecentric optics, QMS systems can capture and measure multiple features within a single image. Diameters, hole centres, angles, radii and linear distances are calculated almost instantly, delivering rapid pass or fail decisions that suit busy production environments.

For subcontract machinists, turned-parts manufacturers and plastics moulders, this translates into true batch inspection efficiency. Components can be placed directly on to the stage without complex fixturing, measured in seconds and automatically recorded. The reduction in manual intervention minimises operator influence, improving consistency across shifts and reducing the risk of subjective measurement variation.

Automatic data export further strengthens process control. Measurement results can be fed directly into SPC systems and quality documentation, supporting ISO compliance and meeting the increasing traceability requirements imposed by customers across sectors such as automotive, aerospace and medical engineering.

Another advantage for UK SMEs is the compact footprint of QMS systems.  They are particularly effective for high-volume turned components, pressed or laser-cut sheet metal parts, injection-moulded plastic components, electronics housings and small assemblies. In these applications, the ability to measure multiple features simultaneously delivers immediate productivity gains.

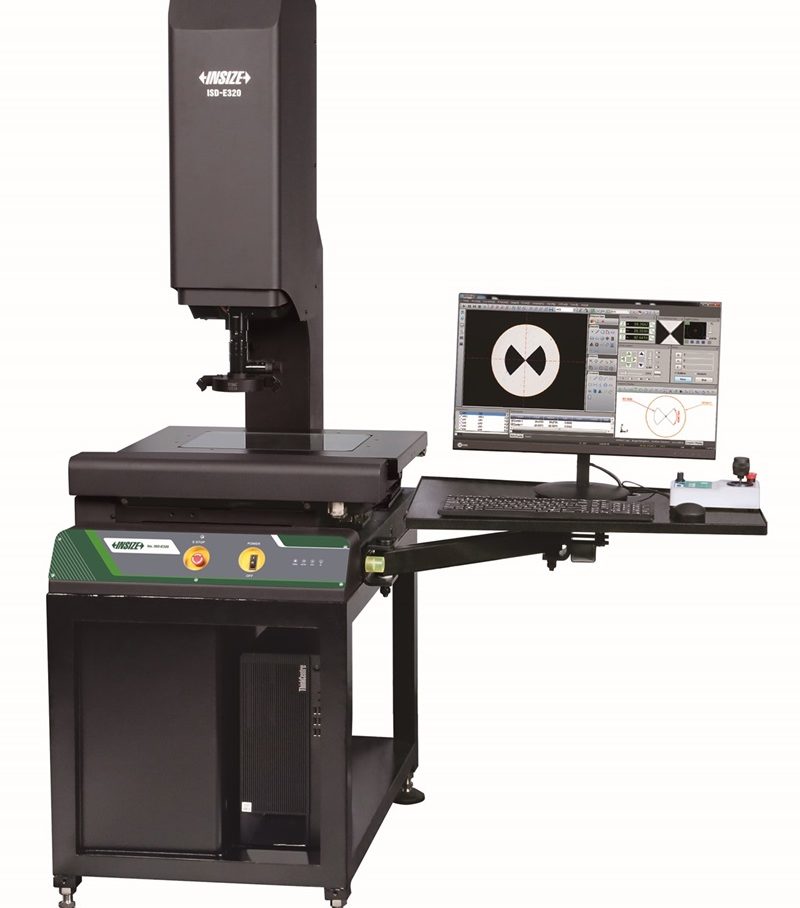

ISD: Versatility and higher level capability

Where applications demand greater flexibility, more complex analysis or higher accuracy, the ISD series expands inspection capability considerably.

Available in both manual and CNC configurations, ISD systems combine precision motion stages, advanced lighting control and sophisticated edge-detection software. This capability enables accurate measurement of more intricate geometries and multi-feature components that go beyond straightforward 2D profile checks.

One of the defining strengths of the ISD range is its ability to import CAD data and create programmed inspection routines. Live measurement data can be compared directly against nominal models, allowing rapid programming and structured reporting. For manufacturers producing safety-critical components, this level of digital integration is increasingly essential.

ISD systems are particularly well suited to first article inspection, aerospace and defence components, medical device parts, tooling validation and research and development projects. In high-mix, low-volume production environments, which are common across specialist UK engineering sectors, the ability to switch between programmed routines quickly while maintaining accuracy is crucial. CNC variants further enhance repeatability by reducing operator dependency. Once a measurement routine is programmed, it can be executed consistently, shift after shift.

Supporting UK competitiveness

Across the UK manufacturing landscape, companies are under sustained pressure to deliver higher quality at greater speed, while maintaining competitive pricing in global supply chains. Inspection processes can often become bottlenecks, particularly when reliant on manual measurement or limited-capability equipment. Vision measurement systems such as QMS and ISD allow manufacturers to shorten inspection cycles, reduce production delays and capture reliable digital data in a streamlined workflow.

As UK manufacturing continues to evolve, embracing digital inspection technologies is no longer a luxury. It is becoming a fundamental requirement for sustainable growth, operational efficiency and long-term competitiveness. Vision measurement, when implemented effectively, offers a clear route to precision at speed.
